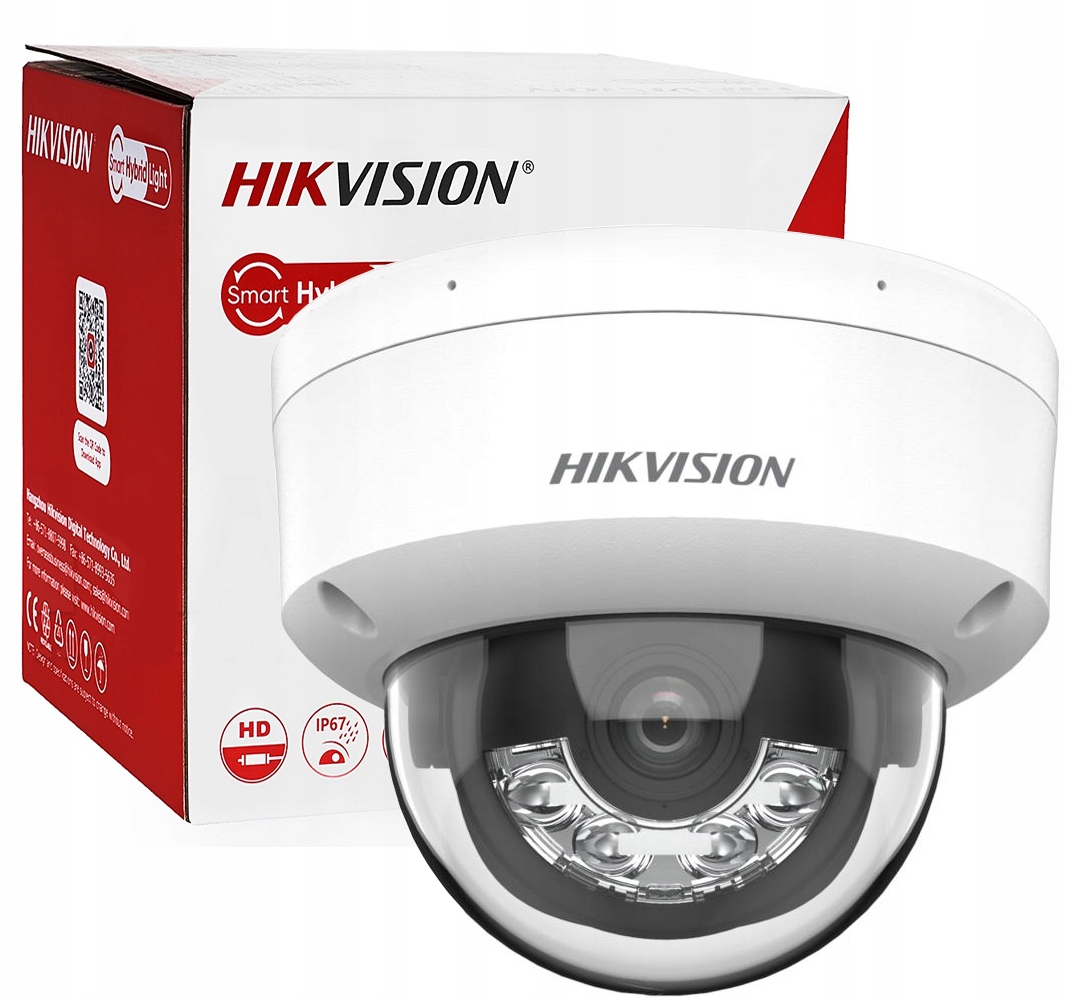

Hikvision DS-2CD1163G2-LIU 6MP Dome IP Camera – Smart Hybrid Light Technology

The Hikvision DS-2CD1163G2-LIU is a 6-megapixel fixed dome network camera designed to deliver high-quality imaging and advanced surveillance features for both indoor and outdoor applications.

Key Features:

• High-Resolution Imaging: Equipped with a 1/2.4" Progressive Scan CMOS sensor, the camera captures clear and detailed images at a resolution of 3200 × 1800 pixels.

  Hikvision

• Smart Hybrid Light Technology: The camera features a hybrid illuminator with both infrared (IR) and white light LEDs, providing illumination up to 30 meters. This ensures optimal image capture in varying lighting conditions, automatically switching between IR for low-light scenarios and white light for color imaging when needed.

  Visiotech Security

• Advanced Compression: Utilizing efficient H.265+ compression technology, the DS-2CD1163G2-LIU reduces bandwidth and storage requirements without compromising image quality.

  hikvision-uae.ae

• Enhanced Security Features: The camera supports human and vehicle detection, minimizing false alarms and ensuring accurate threat detection.

  hikvision-uae.ae

• Built-in Audio: A built-in microphone enables real-time audio monitoring, adding an extra layer of security through sound detection.

  hikvision-uae.ae

• Robust Design: With an IK08 vandal resistance rating and IP67 weatherproofing, the camera is built to withstand harsh environmental conditions and tampering attempts.

  Visiotech Security

Technical Specifications:

• Image Sensor: 1/2.4" Progressive Scan CMOS

• Resolution: 3200 × 1800 pixels

• Lens: 2.8 mm fixed focal length

• Field of View: Horizontal FOV: 105°

  Hikvision

• Minimum Illumination: Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0 Lux with IR

  Hikvision

• Shutter Speed: 1/3 s to 1/100,000 s

  Hikvision

• Day & Night Functionality: IR cut filter with auto switch

• Digital Noise Reduction: 3D DNR

• Wide Dynamic Range (WDR): 120 dB

• Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2

• On-board Storage: Supports microSD card up to 512 GB (optional)

  hikvision-uae.ae

• Network Interface: 1 RJ-45 10/100 Mbps Ethernet port

• Power Supply: 12 VDC ± 25%, PoE (802.3af, class 3)

• Power Consumption: 12 VDC, 0.5 A, max. 6 W; PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7 W

• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

• Ingress Protection: IP67

• Impact Protection: IK08

What's in the Box:

• 1 x Hikvision DS-2CD1163G2-LIU Camera

• Mounting Hardware

• Quick Start Guide

  For more information and purchasing options, visit the official Hikvision product page.
